We did this job from start to finish.

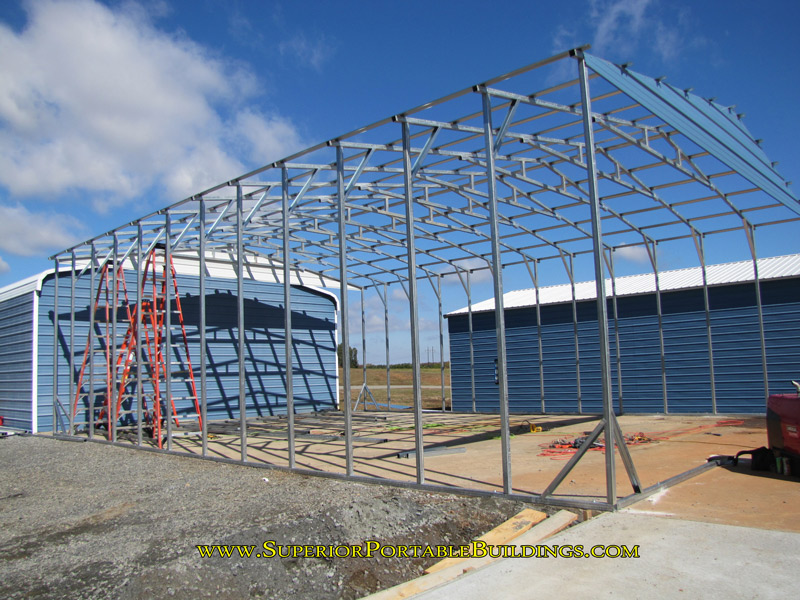

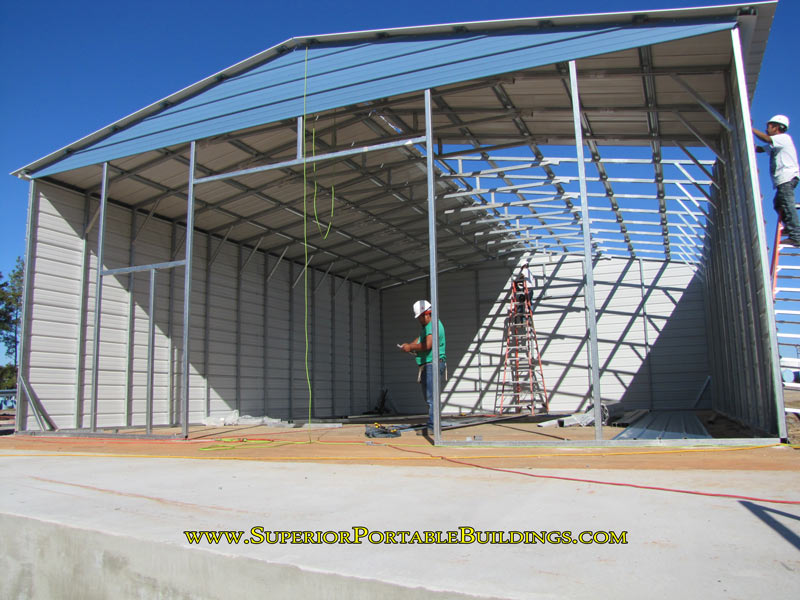

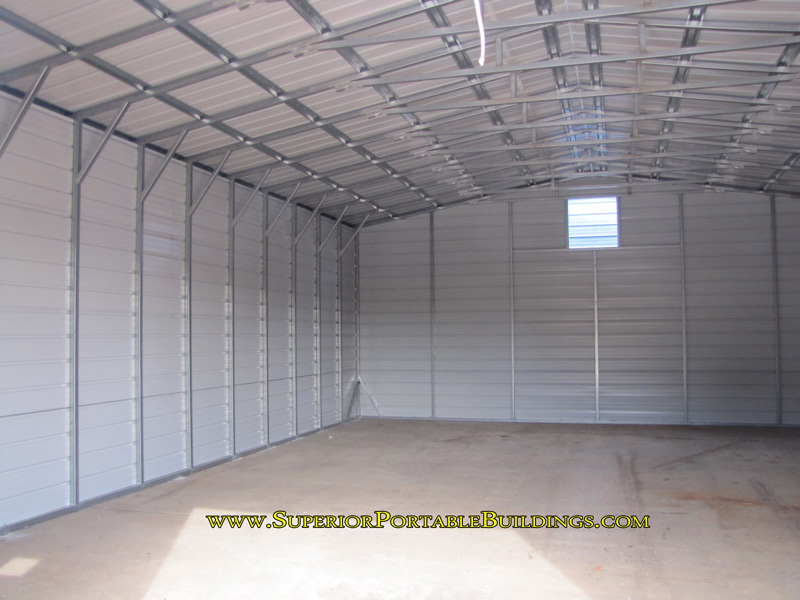

| Steel Garage 30' Wide x 50' Long x 12' Leg Height | |
|---|---|
| To build it on-line, choose these options: | |
| Gauge: | 12 |
| Width: | 30 |
| Length: | 50 |
| Height: | 12 |
| Style: | B |
| Vertical Roof: | Yes |
| Close Right side: | Yes |
| Close Left side: | Yes |
| Close Back End: | Yes |
| Close Front End: | Yes |
| Optional Items: | Quantity: |
| 10' wide x 10' tall garage door in end: | 1 |
| Walk in Door: | 1 |
| Fan frame out: | 1 |

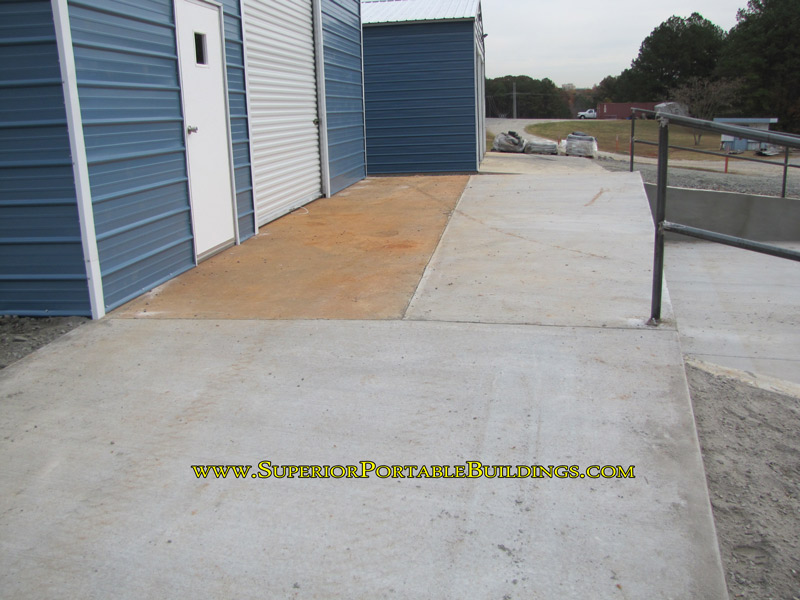

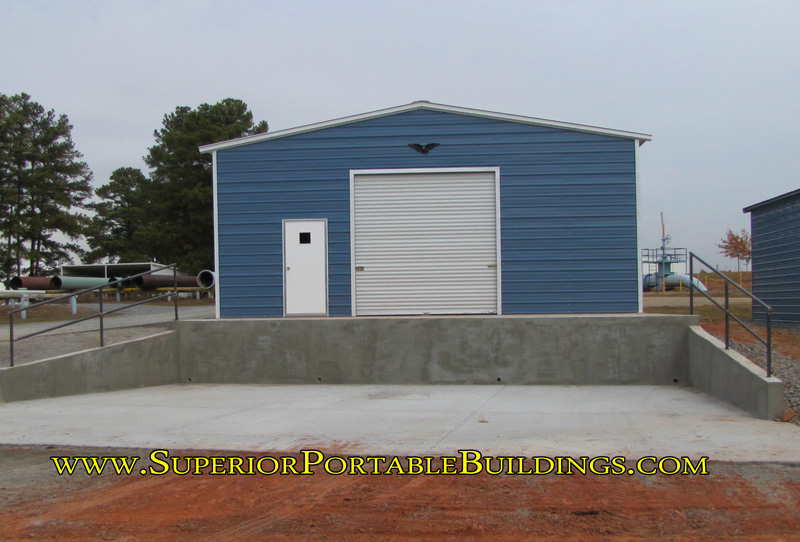

Background: Customer needed another metal building setup for use with a loading dock. Building was placed on some existing concrete.
Facts about this job.

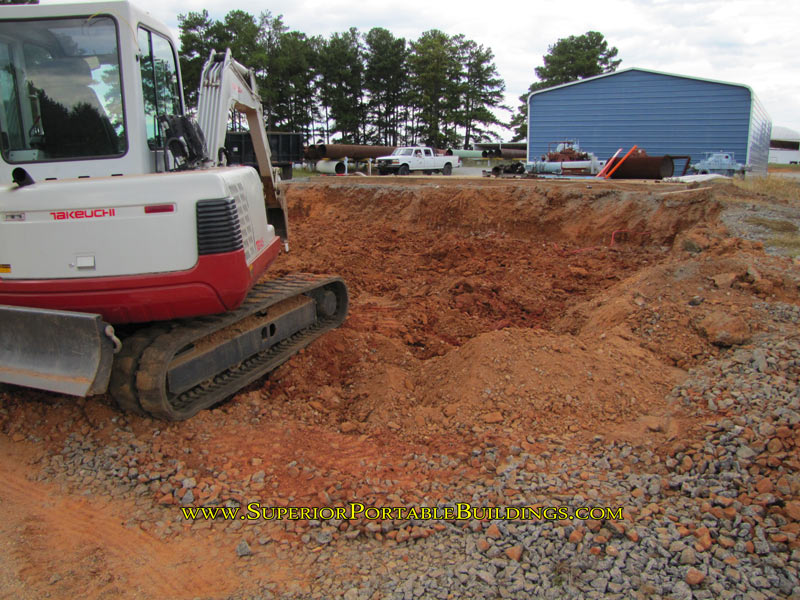

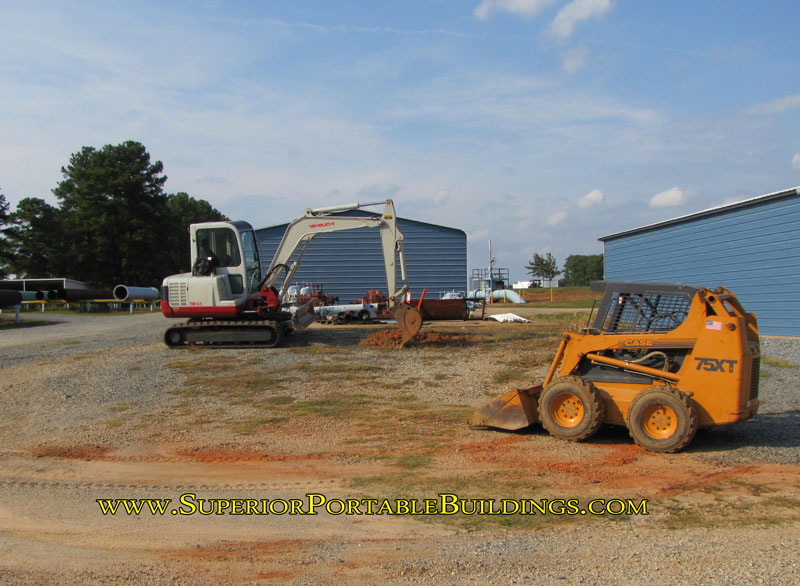

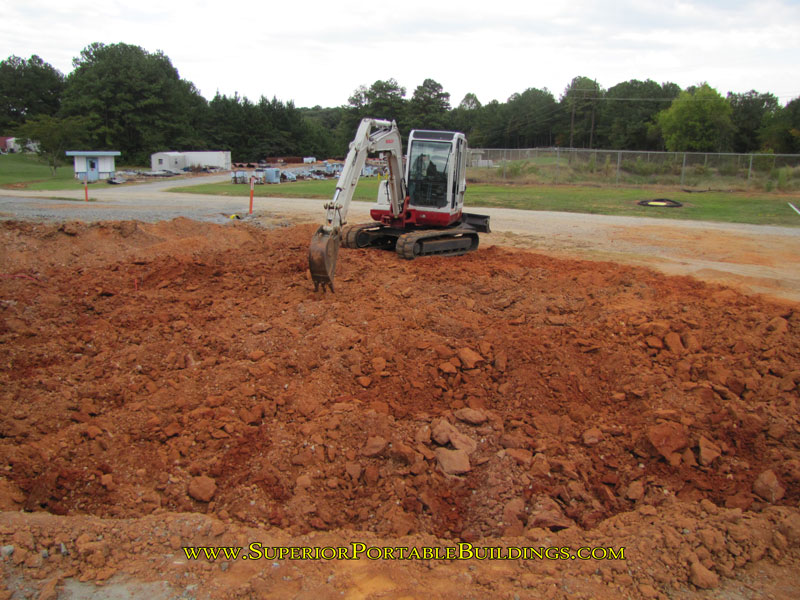

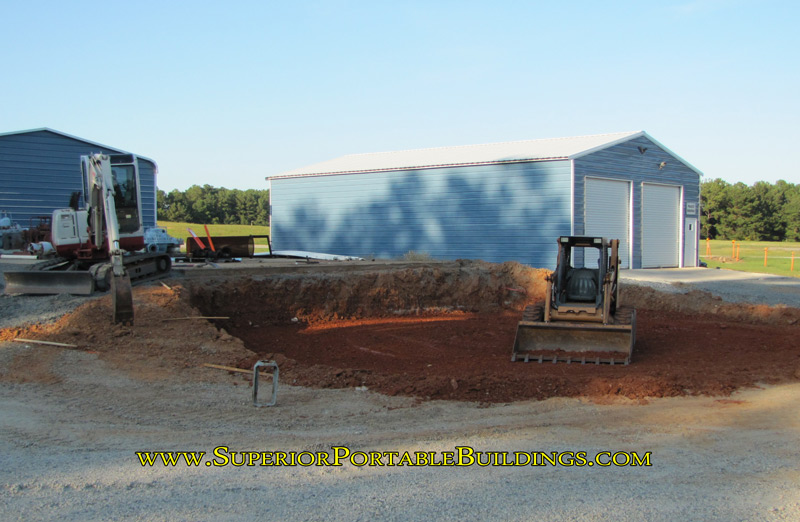

- 25 dump truck loads of dirt were removed for the loading dock entrance.

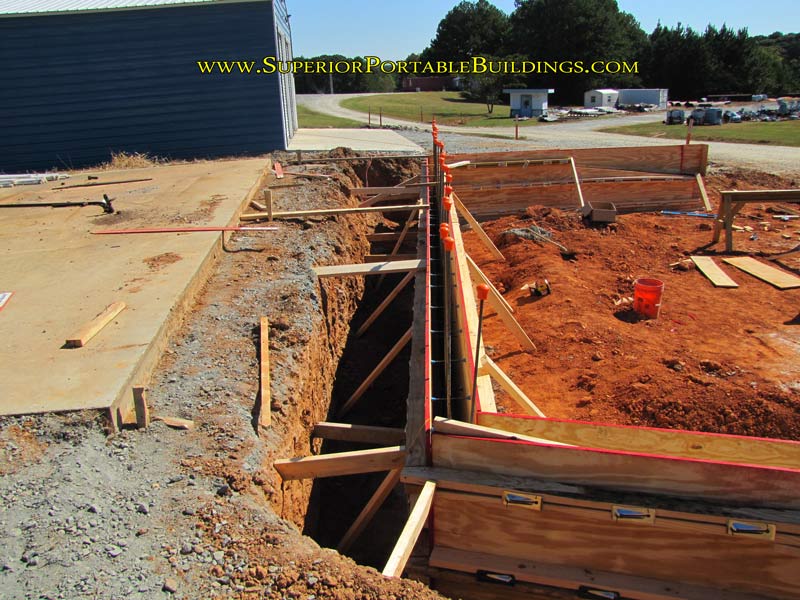

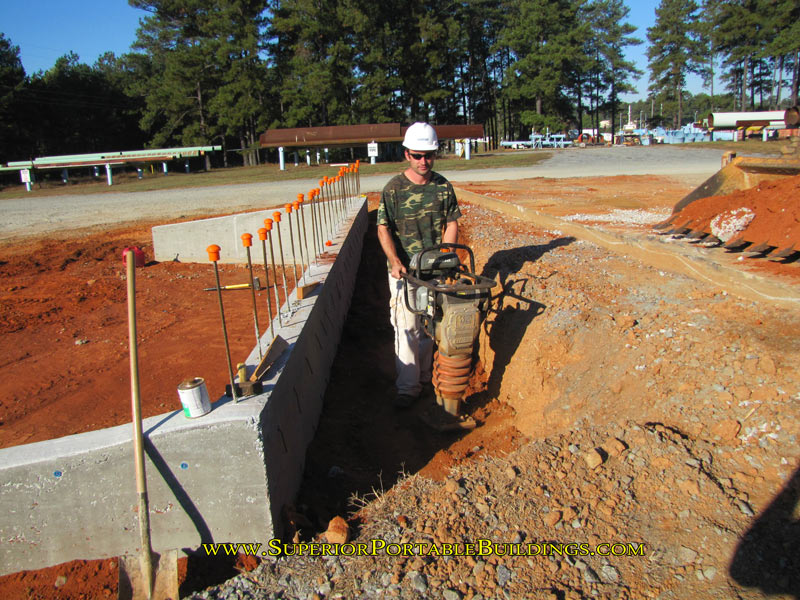

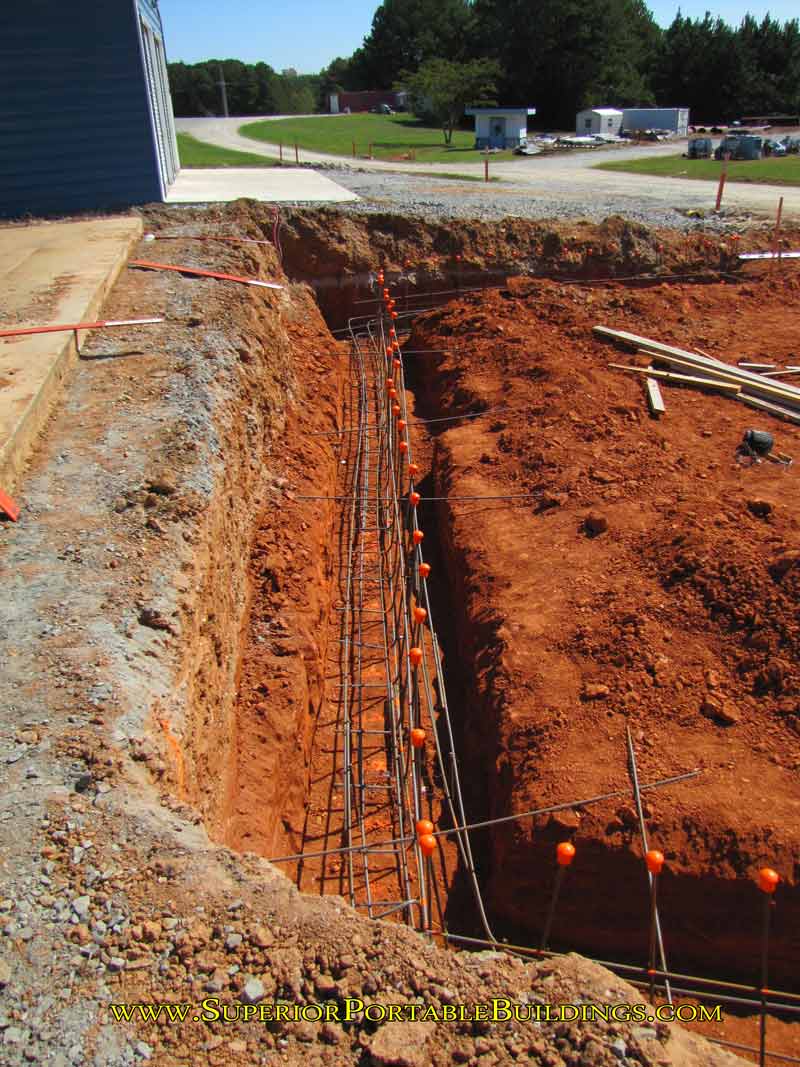

- A concrete footing is under the wall, everything is tied together with steel rebar.

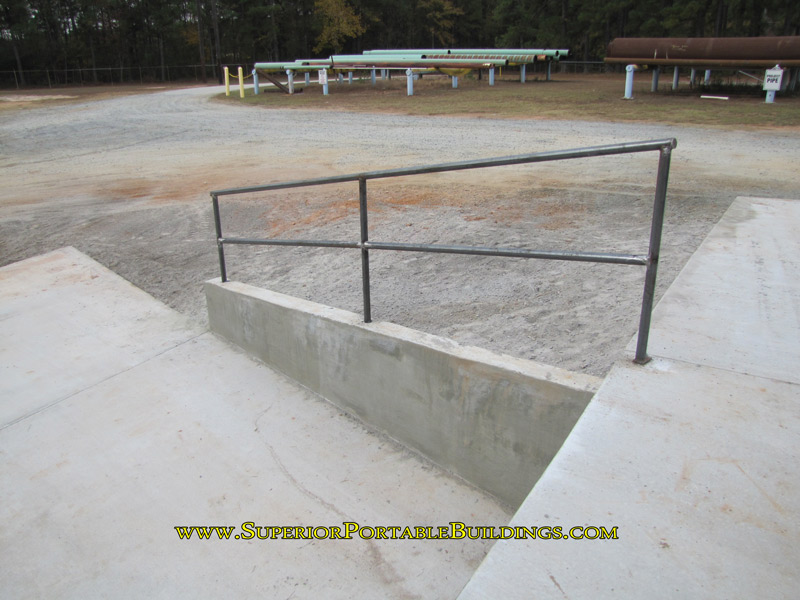

- This slab and wall was designed for a 10,000 lb forklift and its load.
- Job from start to finish took about 5 weeks.
- Job cost for concrete is $25k plus cost of building 14k.
