Additional materials not listed were used in the interior wall finishing. Building was built off a 20' long base unit.
| Steel Garage 12'6" Wide x 12'6" Long x 12' Leg Height | |
|---|---|
| To build it on-line, choose these options: | |
| Gauge: | 12 |
| Width: | 12 |
| Length: | 20 |
| Height: | 12 |
| Style: | B |
| Vertical Roof: | Yes |
| Close Right side: | Yes |
| Close Left side: | Yes |
| Close Back End: | Yes |
| Close Front End: | Yes |
| Optional Items: | Quantity: |
| Extra frame bows: | 4 |
| Door frame out: | 1 |
| Window frame out: | 2 |

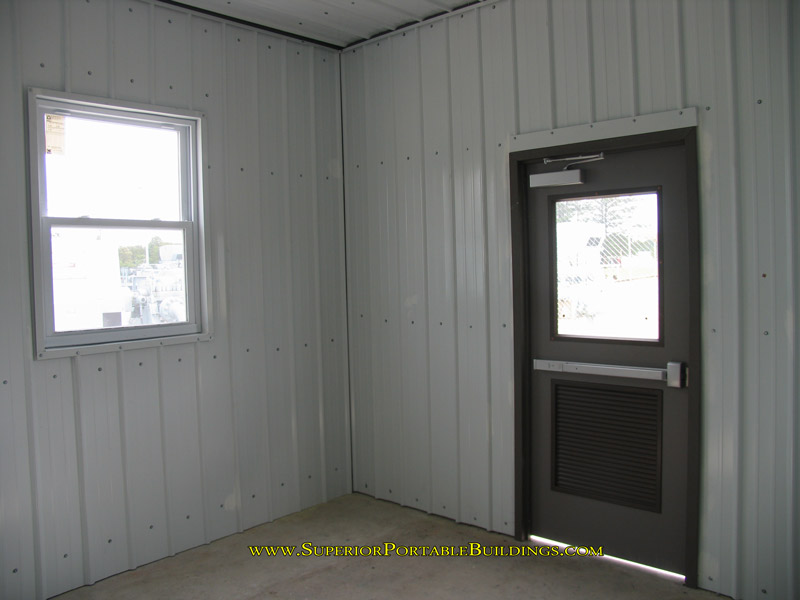

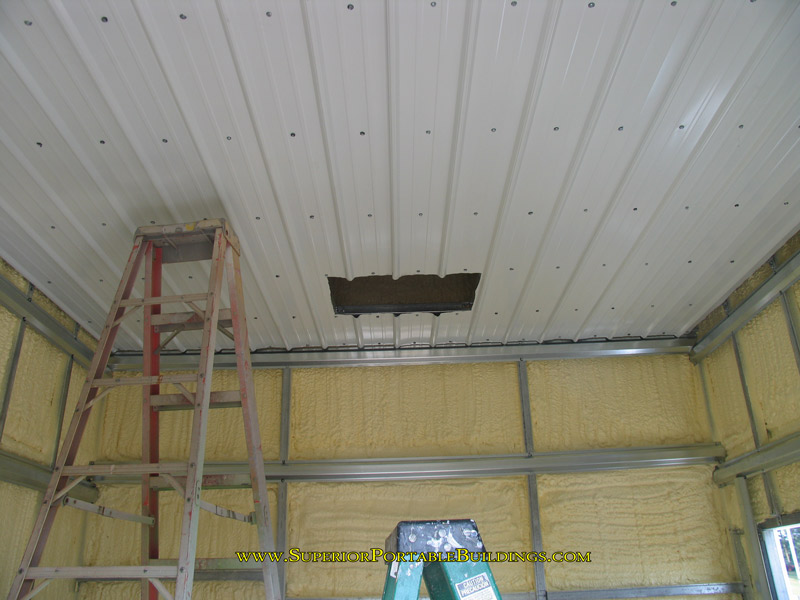

Background: Customer needed a steel building for a gas testing station. An interior wall height of 11' was needed for the vent hood unit. Interior metal walls were required. A custom self closing vented door was installed with armored glass, the door cost was $1500.00 plus installation cost. The building was insulated with closed cell spray foam insulation. Side wall was framed at 24" on center for mounting of other equipment. We can do custom frame spacing if it is ordered.
