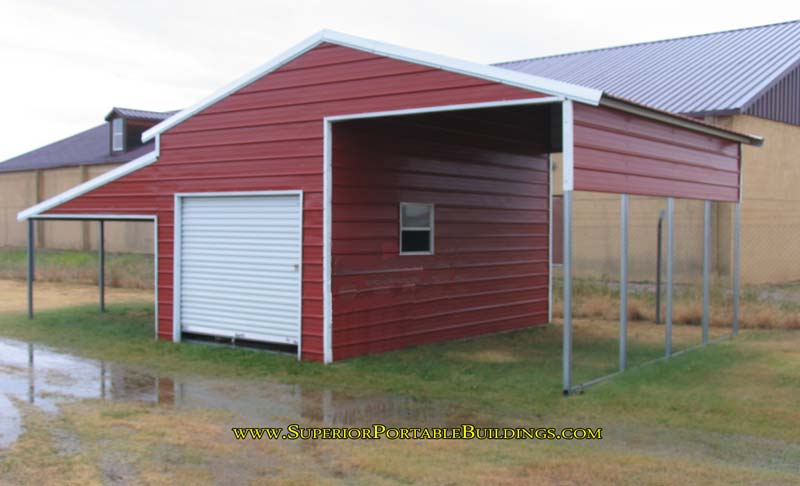

Boxed Eve / A Frame Vertical roof metal barn 32' wide by 21' long by 13.5' peak height. This metal barn has an 20' wide x 21' long x 10' leg height on the center or main building. This creates two 10' wide parking areas in the main building. The lean to is 12' wide by 21' long. This building is designed for protected storage and for a vehicle that is too tall for a standard garage door.
Left lean to is 12' wide by 21' long by 6' leg height. The left lean has a front and rear gable. The roof slopes from about 8' to 6'.
Center section is 20' wide by 21' long by 10' leg height.
Right lean to is not included.
Center section has two end walls with 2 end door openings, a left side wall and and 14' inner wall. It has a 3' wide panel on the right wall. On the left wall there is a walk in door and a window. On the front wall there is a 9' high x 7' wide garage door.
Steel Barn Center Carport 20' Wide x 21' Long x 10' Leg Height |
|
---|---|
To build it on-line, choose these options: | |
Gauge: | 14 |
Width: | 20 |
Length: | 21 |
Height: | 10 |
Style: | B |
Vertical Roof: | Yes |
Close Right side: | No |
Close Left side: | Yes |
Close Back End: | Yes |
Close Front End: | Yes |
Optional Items: | Quantity: |
Attach Fees: | 1 |
9' x 7' Garage Door In End: | 1 |
36" Walk In Door: | 1 |
Window: | 1 |
Garage Door Opening In End. | 2 |
14' Tall Inner Wall With Tubing: Call For Price: |
1 |
Steel Barn lean to: 1 - 12' wide units: 12' Wide x 21' Long x 6' Leg Height |
|
---|---|
To build it on-line, choose these options: | |
Gauge: | 14 |
Width: | 12 |
Length: | 21 |
Height: | 6 |
Style: | B |
Vertical Roof: | Yes |
Close Right side: | No |
Close Left side: | No |
Close Back End: | No |
Close Front End: | No |
Optional Items: | Quantity: |
Gable End Up to 24' wide: | 2 |
32' wide by 21' long x 10' leg height vertical roof A Frame metal barn.
Additional openings can be placed in the sides for $200.00 each.
This barn has the standard 14 gauge frame. This unit could have been built with a 12' to 14' tall leg for extra high RVs. A heavy duty 12 gauge frame option is available. The lean to could have been raised to a 7' leg make the roof line striaght. This would open the front of the lean up.
