Metal Barn - B7 - Single Lean To Barn

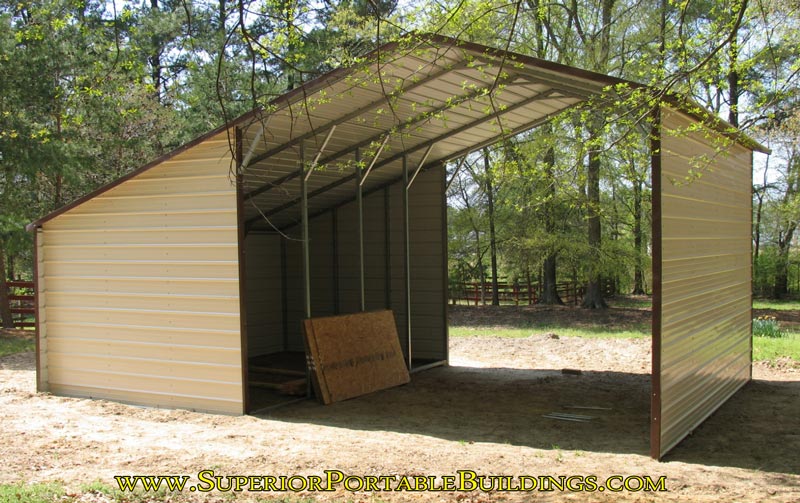

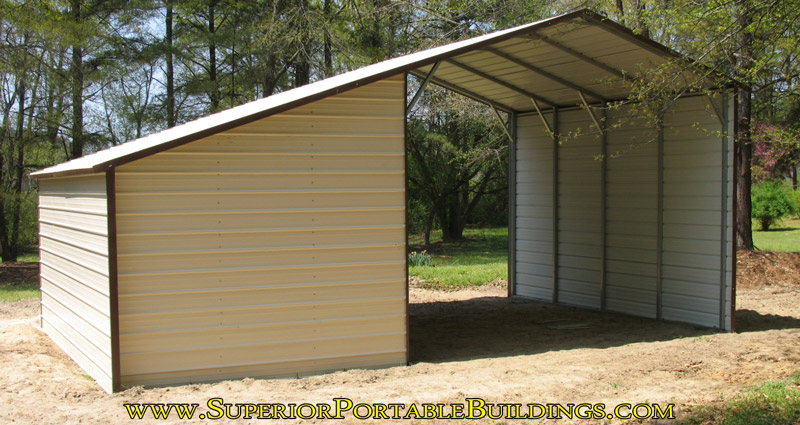

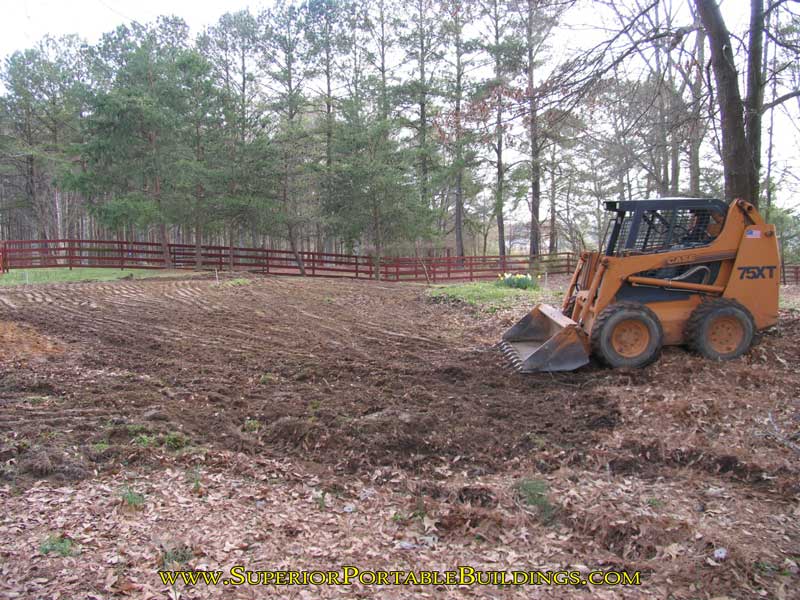

Boxed Eve / A Frame Straight roof metal barn 30' wide by 21' long by 14.5' peak height. This metal barn was installed on a level dirt area. One lean to was selected for an enclosed stall area. The carport area was left open which provides an easy open area to work with a horse.

This building was installed by a loving father for his daughters use with her horse. This was a budget barn that was economical, quick to install, and set up for a specific purpose.

Left lean to is 12' wide by 21' long by 8' leg height.
Center section is 18' wide by 21' long by 11' leg height.
Right lean to was not included.

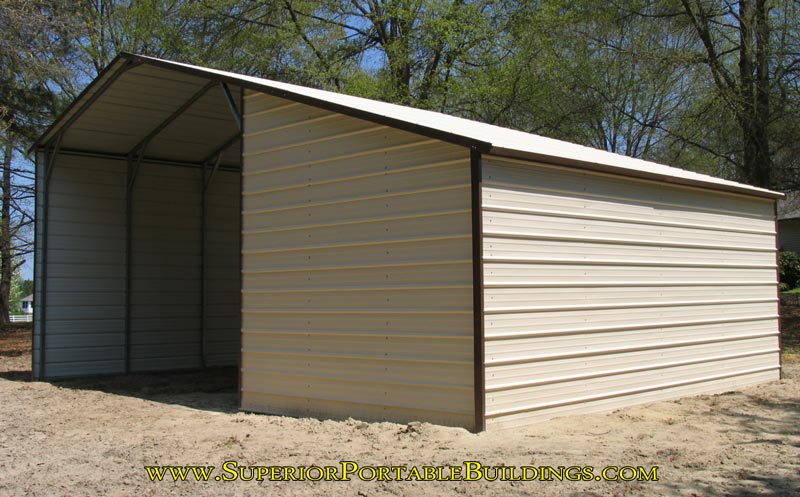

Lean to has enclosed front back and side.

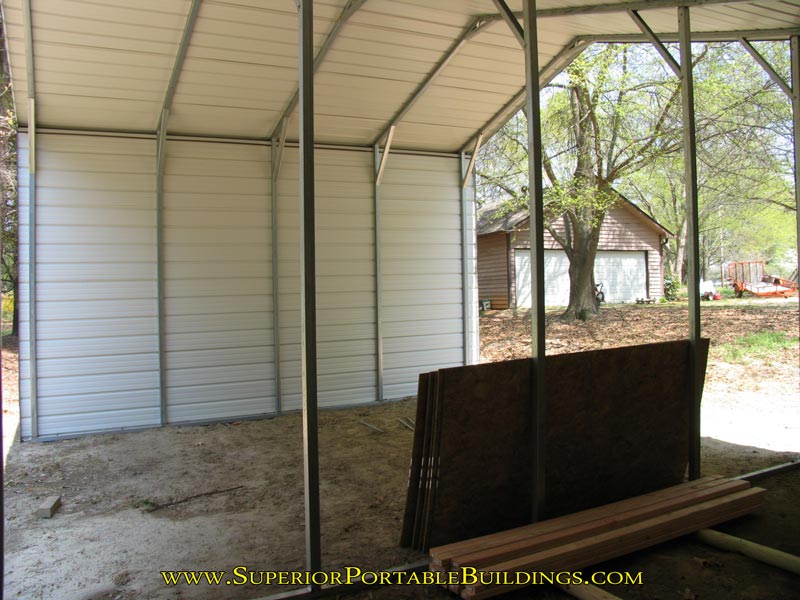

Center section has the right wall enclosed.

Steel Barn Center Carport 18' Wide x 21' Long x 11' Leg Height
To build it on-line, choose these options:
Gauge:	14
Width:	18
Length:	21
Height:	11
Style:	B
Vertical Roof:	No
Close Right side:	Yes
Close Left side:	No
Close Back End:	No
Close Front End:	No
Optional Items:	Quantity:
Attach Fees:	1
2' Braces:	8

Steel Barn lean to 1 - 12' wide units or one 12' wide: 12' Wide x 21' Long x 8' Leg Height
To build it on-line, choose these options:
Gauge:	14
Width:	12
Length:	21
Height:	8
Style:	B
Vertical Roof:	No
Close Right side:	No
Close Left side:	Yes
Close Back End:	Yes
Close Front End:	Yes
Optional Items:	Quantity:

30' wide by 21' long x 11' leg height straight line roof A Frame metal barn.

Additional openings can be placed in the sides for $200.00 each.

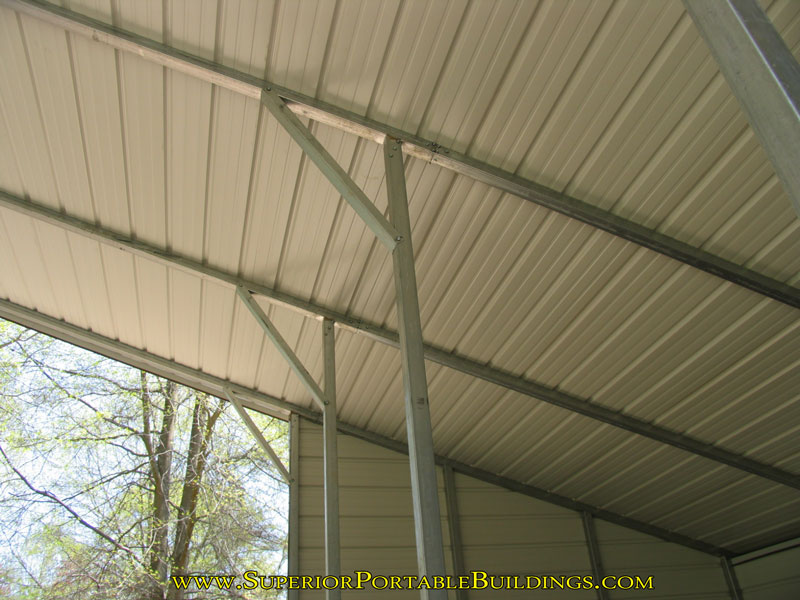

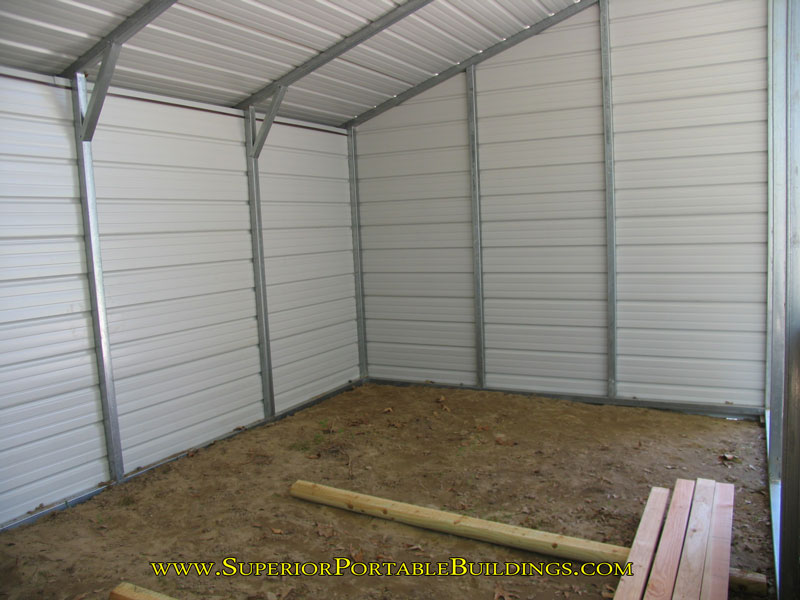

This barn has the standard 14 gauge frame. This unit could have gable ends installed in the center bay and the building could also have the vertical roof upgrade which would cost about another $600.00. The customer installed plywood around the stall walls to prevent damage to the building by a kick from a horse.
