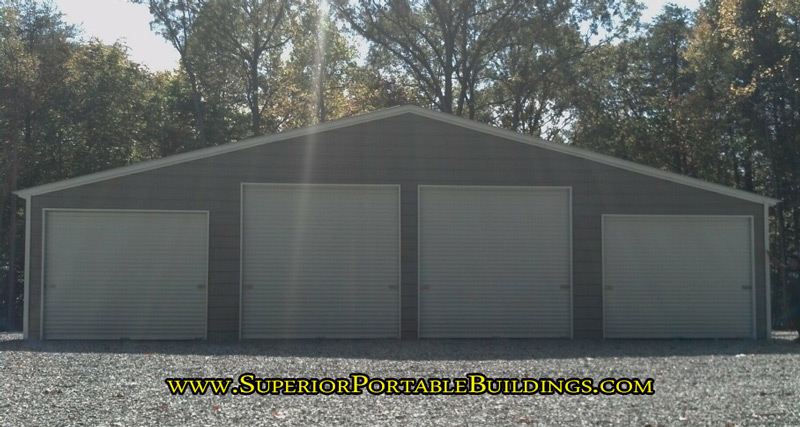

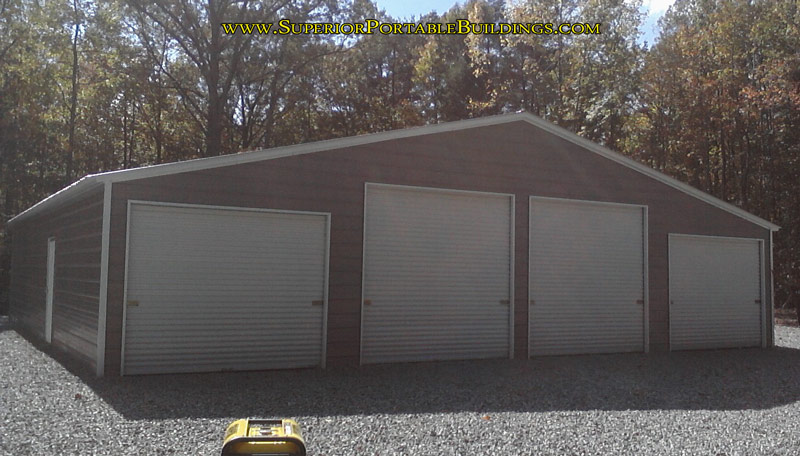

Boxed Eve / A Frame Vertical Straight roof metal barn 48' wide by 41' long by 15.5' peak height.
Left lean to is 12' wide by 41' long by 10' leg height
Center section is 24' wide by 41' long by 12' leg height
Right lean to is 12' wide by 41' long by 10' leg height
Lean tos have enclosed sides and end walls with 10'H x 8'W garage doors .
Center section has front and back walls enclosed with two 10'H x 10'W garage doors installed in the front wall of the steel barn.
Steel Barn Center Carport 24' Wide x 41' Long x 12' Leg Height |
|
---|---|
To build it on-line, choose these options: | |
Gauge: | 14 |
Width: | 24 |
Length: | 41 |
Height: | 12 |
Style: | B |
Vertical Roof: | Yes |
Close Right side: | No |
Close Left side: | No |
Close Back End: | Yes |
Close Front End: | Yes |
Optional Items: | Quantity: |
10' x 10' Garage Door In End: | 2 |
Attach Fees: | 2 |
Steel Barn lean tos 2 - 12' wide units or one 24' wide: 24' Wide x 41' Long x 10' Leg Height |
|
---|---|
To build it on-line, choose these options: | |
Gauge: | 14 |
Width: | 24 |
Length: | 41 |
Height: | 10 |
Style: | B |
Vertical Roof: | Yes |
Close Right side: | Yes |
Close Left side: | Yes |
Close Back End: | Yes |
Close Front End: | Yes |
Optional Items: | Quantity: |
10' x 8' Garage Door In End | 2 |
36" Walk In Door | 1 |
48' wide by 41' long x 12' leg height straight line vertical roof A Frame metal barn.
Additional openings can be placed in the ends for $100.00 each or in the sides for $200.00 each.
This barn can have have the heavy duty 12 gauge frame upgrade added for an additional fee. The center bay could have inner walls installed to seperate it from the lean tos if required.
