This Barn measures 42' wide x 31' long x 15.5' peak height. It is a Boxed Eve / A Frame vertical roof Carport with 2 Lean Too's 12' wide x 31' Long with a 10' side post height. 2 walk in doors, 2 - 10'wide x 10'high garage doors. Installed on a bed of gravel.
Left lean to is 12' wide by 31' long by 10' leg height.
Center section is 18' wide by 31' long by 12' leg height.
Left lean to is 12' wide by 31' long by 10' leg height.
Steel barn - Center Building: 18' Wide x 31' Long x 12' Leg Height |
|
---|---|
To build it on-line, choose these options: | |
Gauge: | 12 |
Width: | 18 |
Length: | 31 |
Height: | 12 |
Style: | V |
Close Right side: | Yes |
Close Left side: | Yes |
Close Back End: | No |
Close Front End: | No |
Certified with Bracing: | Yes |
Optional Items: | Quantity: |
10' x 10' Garage Door In End: | 2 |
Walk in door In Side: | 2 |
Attach Fees: | 2 |
Steel Barn lean to 1- 24' wide carport: 24' Wide x 31' Long x 10' Leg Height |
|
---|---|
To build it on-line, choose these options: | |
Gauge: | 12 |
Width: | 24 |
Length: | 31 |
Height: | 10 |
Style: | V |
Certified with Bracing: | Yes |
Close Right side: | Yes |
Close Left side: | Yes |
Close Back End: | Yes |
Close Front End: | Yes |

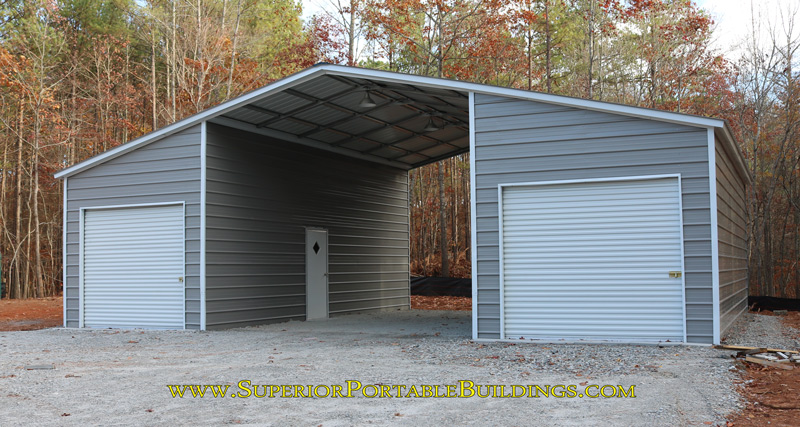

Overall frame size is 42' wide by 30' long x 12' leg height, A frame / Vertical roof building with 2 lean too's. Roof size is bigger with the overhangs, approx. 43.5' wide x 31' long.
This building has our new trim package. This building is the best deal going for sq ft cost on storage with a large covered bay for a camper/rv or a piece of heavy machinery. This building runs about $11k installed on your level lot.

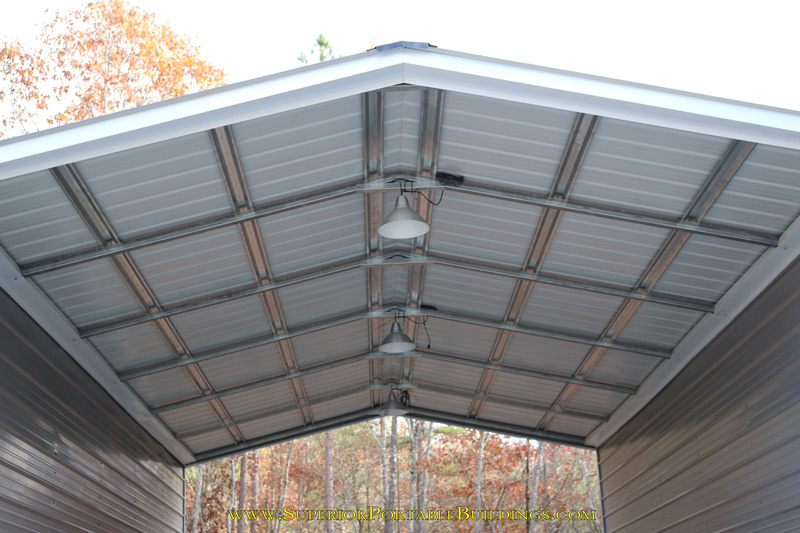

Center roof pic.

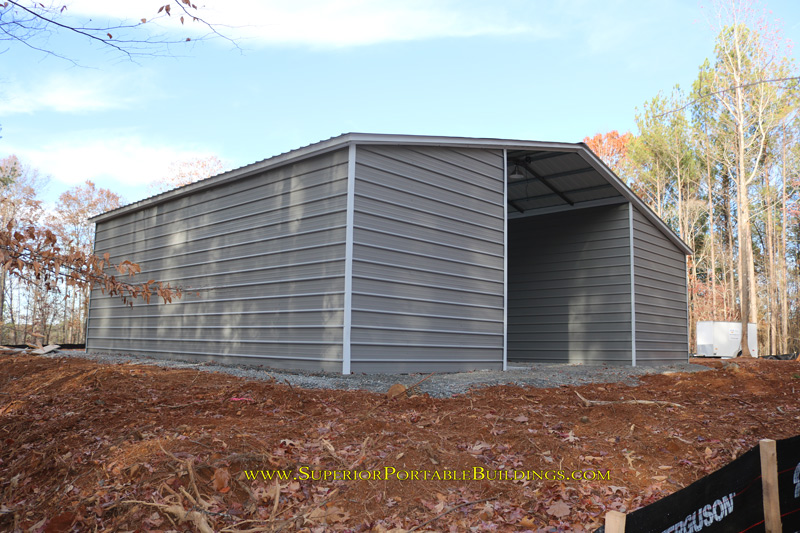

Back wall.

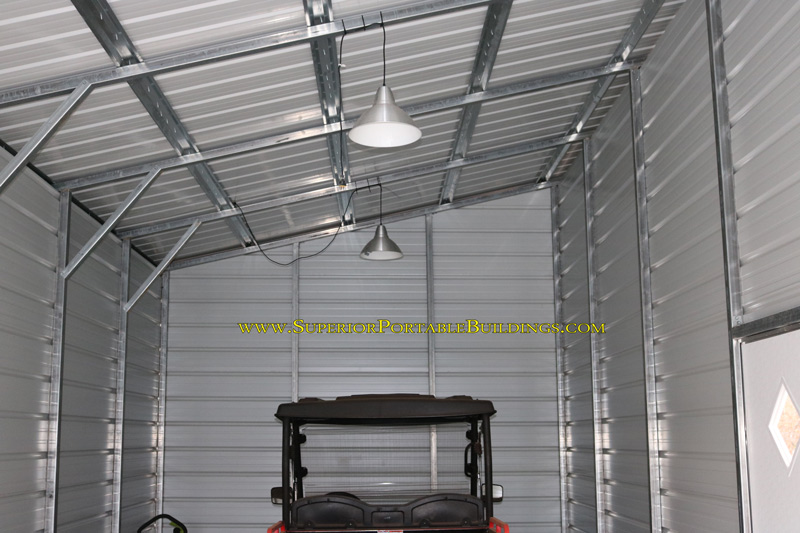

Left lean 12' lean to.

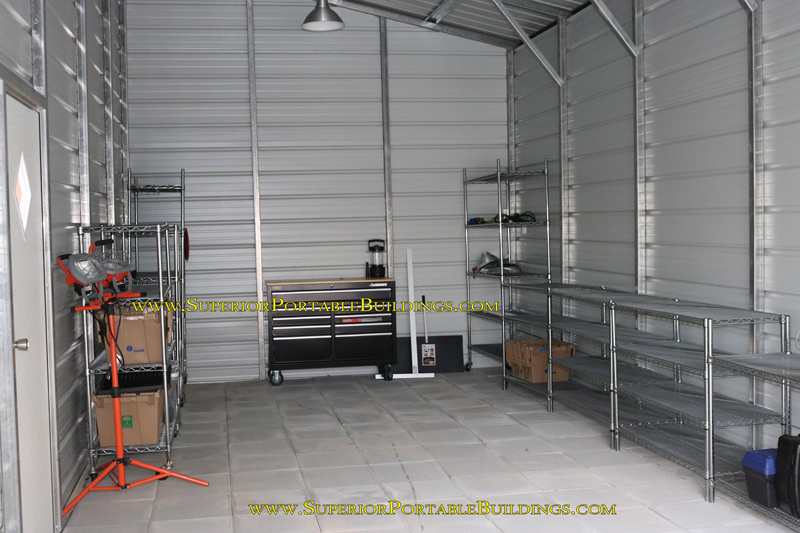

Right side lean to. Customer installed pavers and put in some custom racking and tool boxes.

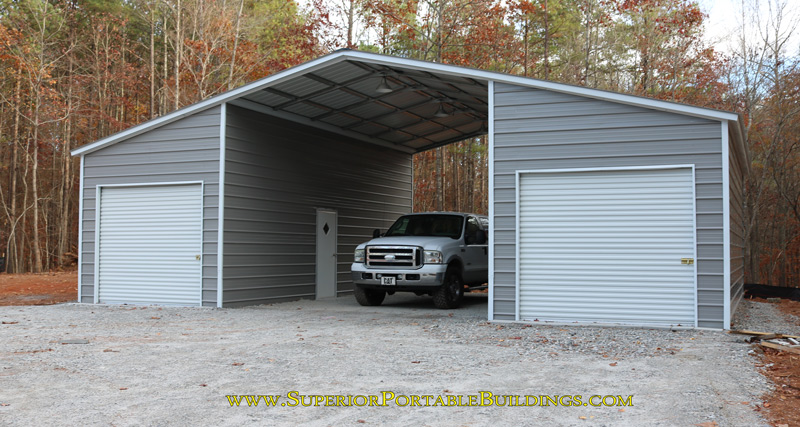

Full size truck in carport area.
